HPRT DC24A Food Packaging Automatic Number Machine TTO Printer Factory Expiry Date Coding for Pneumatic Driven
- Commodity name： HPRT DC24A Food Packaging Automatic Number Machine TTO Printer Factory Expiry Date Coding for Pneumatic Driven
- Product Description
-

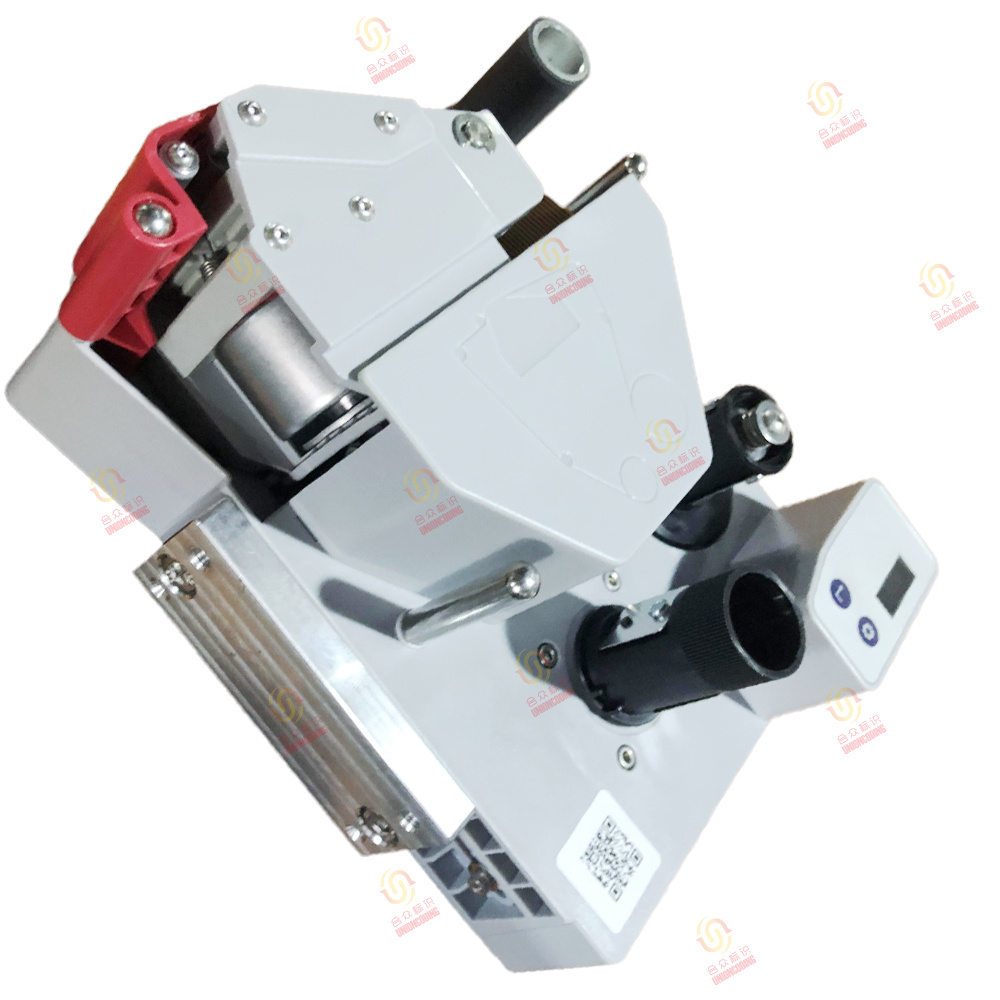

DC24A-E Intelligent Date Coder For Packaging Machine
Fast print speed up to 200mm/s
Suitable for intermittent flexible packaging machines and labellers up to 200 packs per minute.Code Length12mmCode Width24mmPrinting MethodThermal Transfer PrintingResolution203dpi (8 dots/mm)Printing Speed20-200mm/sPrint Area24*12mmCharacter Size2mm~4mm adjustableCharacter TypeChinese and English characters, numbers, punctuationCoding Direction0°Or 180°coding TypeProduction date, shelf life and sales period
Automatic batch number and batch codeFactory numberMachine number
Custom textExternal InputSensor signal output: NPN/PNP (DC 12V-24V), switch-type sensorExternal OutputBorderless contactRibbon Length200 mRibbon TypeType: Wax / ResinType of Flexible Packaging MaterialVarious films and composite films such as Pvdcpet, PE,NY,CPP,OPP,BOPP,
BOPET,BOPA, PE,VMPET,VMCPP, etc.Working Temperature and Humidity5°ºC-40°ºC,10%-90%RH, non-condensingIP ClassIP40Power SupplyAdapter input: AC 100-240V+10%,50-60Hz, maximum output current 4AI/o lInterfacePrint signal, fault relay, ov/COM, DC 24V

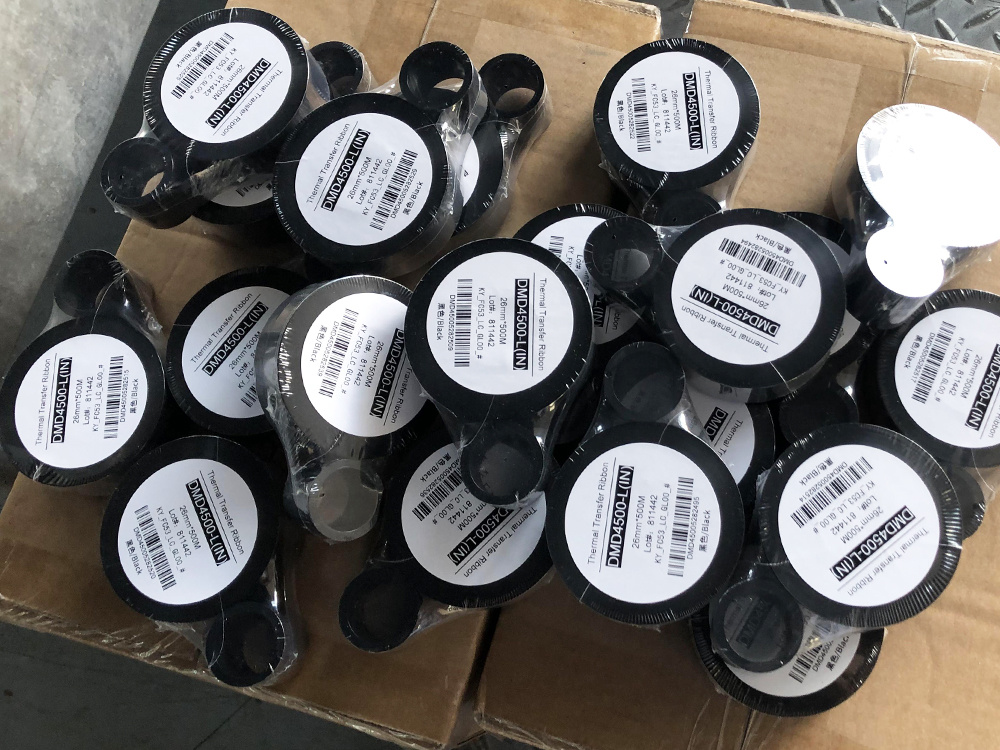

We also providing original printhead and ribbons for follow-up.
Key words:
Previous
Previous
FAQ
1. What types of coding machines do you mainly produce?
We specialize in various date coding equipment, including: - Thermal Transfer Coding Machines: Suitable for materials like plastic, paper, and film, offering clear printing at low costs.
2. Do you support customized requirements?
Yes. We can provide tailored coding solutions based on customers’ product materials, coding content (e.g., production dates, LOGOs, QR codes), and production line specifications, including software function adaptation and hardware size adjustment.
3. What quality certifications do your machines have, and what is the warranty period?
- All equipment is certified under **ISO 9001 quality management systems**, with some products meeting international standards like CE and FDA. - The machine warranty period is **1–2 years** (subject to the contract), with free parts replacement and technical support during the warranty period.
4. Is the supply of accessory consumables stable? Can you provide samples?
- We independently produce a full range of consumables, such as ink rollers, coding foils,TTO ribbons and alphabet letters, with sufficient inventory and global fast delivery. - New customers can apply for **free sample testing** by contacting our account managers with detailed requirements.
5. How can I obtain technical support or after-sales service?
- We offer **24-hour online customer service** via email, phone, or instant messaging.
6. What are the payment methods and delivery cycles?
- We support payment methods such as T/T and L/C，Paypal and so on. - The delivery cycle for standard products is **10–15 working days**, while customized products require evaluation based on requirements (usually 20–30 working days).
After-Sales Service
Technical support for after-sales service
Source manufacturers 20 years of industry experience specializing in providing food, pharmaceutical, chemical and other industries coding marking integrated solutions.

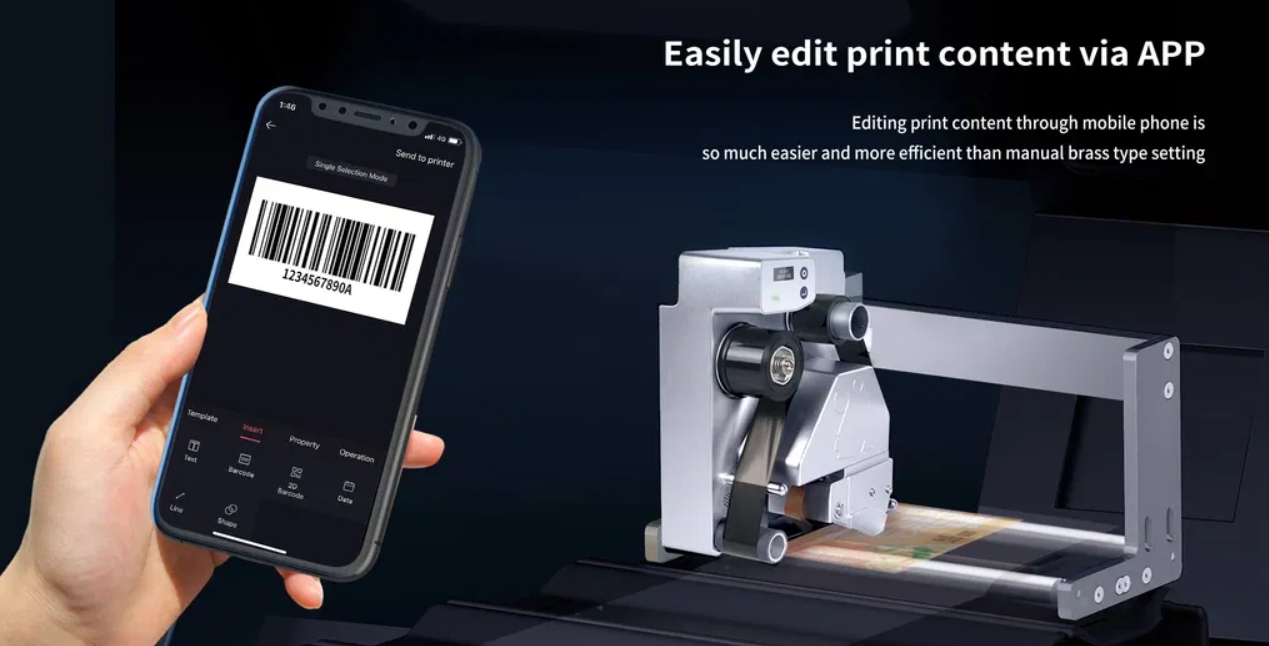

Products used in the food industry can be edited online coding content, can print bar codes, two-dimensional codes, simple icons, etc.
With 80 employees and 20 professional production lines, our factory produces 380 million square meters of packaging consumables annually. We have 20 national patents
Pre-sales, sales and after-sales team 24 hours online 2 hours response process simple service convenient
